FME Tech 6
Efficient, Precise, and Stress-Free – Electrochemical Drilling redefined
The Tech 6 offers unique properties that elevate drilling to an entirely new level

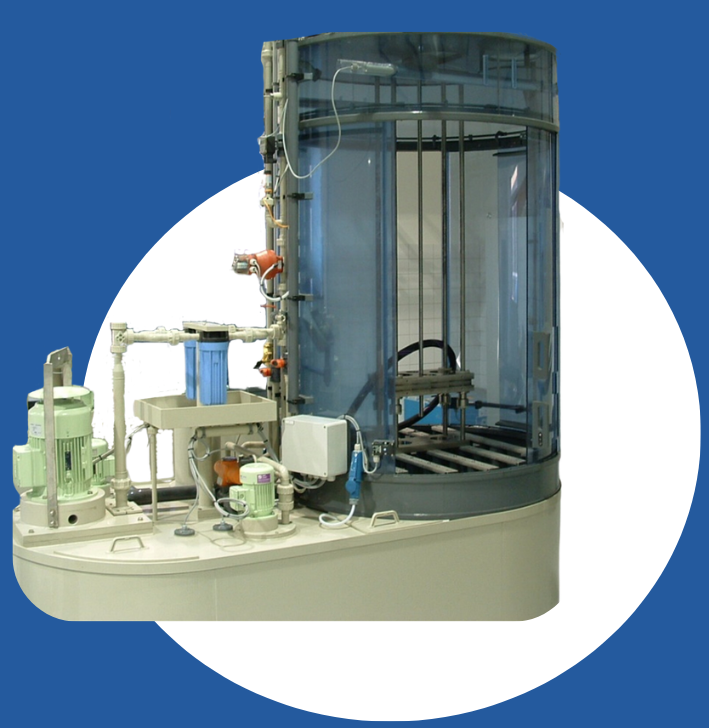

The Tech 6 is designed to deliver the finest in electrochemical drilling. It offers a fully integrated, compact system that manages movement, power control, and electrolyte regulation. This, combined with focus on flexibility, allows for quick adjustments to different molds, making it a versatile solution for even the most complex drilling tasks.
No stress, no heat
Offers a cutting-edge solution for drilling holes in even the hardest materials. Unlike traditional methods, ECD introduces no stress into the material, making it ideal for thin walled and sensitive parts.
Hardness irrelevant
Because the Tech 6 is electrochemically based, the hardness of the material doesn't impact tooling, takt time or wear. This makes the process especially advantageous for machining tough, hard alloys.
Versatile and efficient

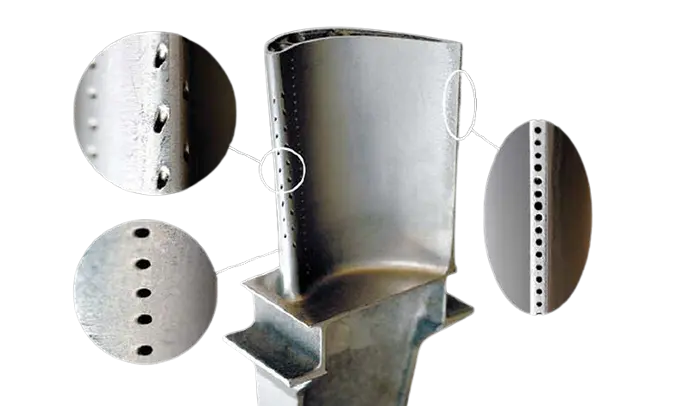

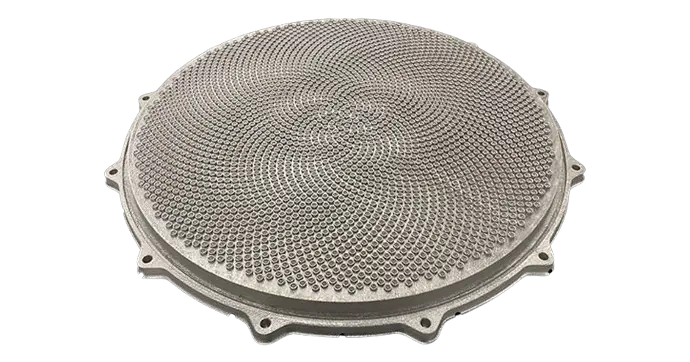

Enables diverse depths, diameters and shapes in one setup, streamlining the drilling process. The Tech 6 has proven to be adventageous in challenging applications, having drilled over 300 holes in a single instance, showcasing its efficiency and scalability.
High finish
Delivers an exceptional surface finish with Ra values as low as 0.2 microns, which can be further optimized. The process inherently prevents burrs making it ideal for intersecting holes.
Unmatched Precision and Capability
Excels in drilling extreme dimensions, such as lengths exceeding 300mm with diameters as small as 0.3mm, all without compromising accuracy or material integrity.
Tubular channels
Improves efficiency by refining the drilling process to create tubular channels. It achieves this by removing more material at specific stages, resulting in greater precision and performance.
Complex shapes

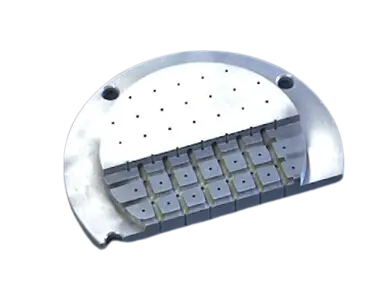

Utilizes specialized drill molds for precise shapes, from simple holes to complex designs like stepped drills and squares, ensuring flexibility and accuracy in applications
Curved drilling
Material is removed only where the molds are conductive, allowing for intricate shapes and complex contours. Enabaling drilling of innovative designs with unmatched accuracy.
Product support
Not in need of equipment or uncertain if the Tech 6 suits your product?
At FME, we can produce your product using our equipment. Whether it's for testing purposes or series production, we are here to fulfill your request.
